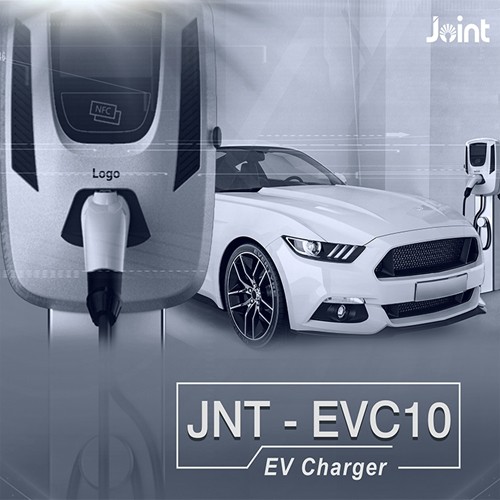

7KW 32A 240V Type 2 Plug Wallbox EVSE MID AC Commercial EV Charging Station
6 times faster than Level 1 charger, charge most EVs under 4 hours, intelligent chip automatically adjusts current!
Application:
Designed to be installed in homes, hotel or restaurant, workplaces, college or hospital, central commercial palce, car park (both inside and outside). Including separate mounting bracket for easy fixing to walls.
Security:
Leakage detection and protection: Over-Current, Over-Voltage, Under-Voltage, Residual Current, Surger Protection, Short Circuit, Over-Temperature protection, Ground Fault, Current Leakage Protection
Emergency stop button protection;
These chargers comes with the surge protection of the advanced level. Most of people don't realize that this is very important feature that keeps your vehicles charging equipment safe. Most of chargers based on standard EVSE controllers lack of this safety feature.)
EV Charger Station Features:
| Model Name | EVC10-07C1S | EVC10-07C1C | EVC10-22C1S | EVC10-22C1C |
| Input Rating | 230±10%Vac (One Phase) | 400±10%Vac (Three Phase) |
| Frequency | 50Hz |
| Input Current | 32A |
| Output Current | 32A |
| User Authentication | RFID (ISO 14443) |
| External | LAN (optional) + 4G (optional) or Wi-Fi (optional) |
| Internal | OCPP 1.6 JSON (OCPP 2.0 compatible) |
| Operating Temperature | -22˚F~122˚F(-30˚C~50˚C) |
| Humidity | Max. 95% RH |
| Altitude | ≦ 2000m |
| IP Level | IP 54 | IP65 for box | IP 54 | IP65 for box |
| Dimension(WxDxH) | 350x250x175mm (13.8″x9.8″x6.9″) | 350x250x130mm (13.8″x9.8″x5.1″) | 350x250x175mm (13.8″x9.8″x6.9″) | 350x250x130mm (13.8″x9.8″x5.1″) |
| Charging Outlet | One Socket | 5M Cable | One Socket | 5M Cable |
| RCD | RCD TYPE B |
| Charging Interface | Type 2 Plug |
| Multiple Protection | Over current, Under voltage, Over voltage, Residual current, Surge protection, Short circuit, Over temperature, Ground fault, Current leakage protection |
